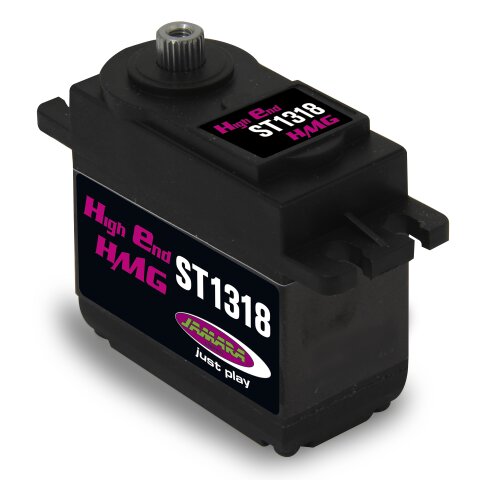

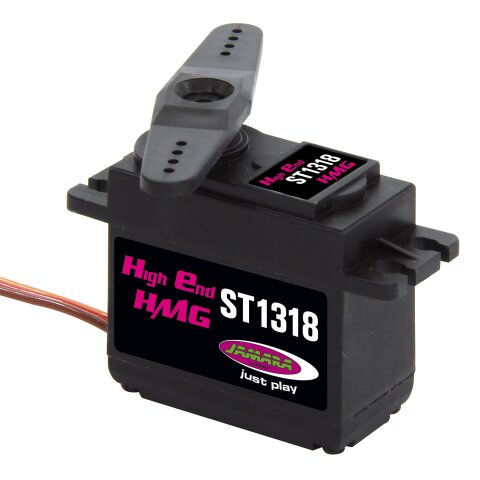

Servo High End 1318 MG

Item number: 033216

EAN: 4042774443177

Category: Servos

Instructions Manual


Prices visible after login
Recommended retail price: 24,99 €
Available now!


Description

Length of cable in mm: 260
Voltage: 4,8 – 6 V
Max current consumption:  700 mA (4,8 V) / 900 (6,0 V)
Force in kg: 11,8 kg/cm (4,8V) / 13,1 kg/cm (6,0 V)
Transit time: 0,20 Sec./60° (4,8 V) / 0,18 Sec./60° (6,0 V)

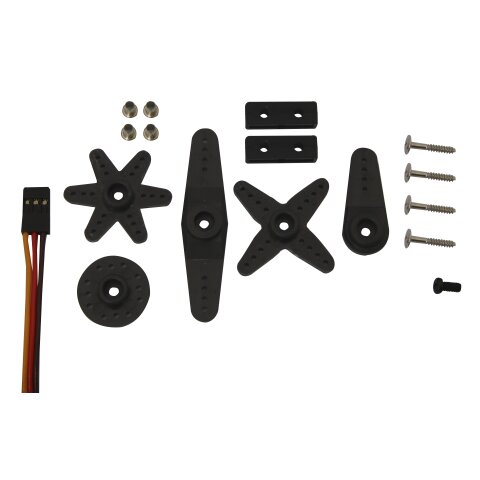

Servo horn: 25 teeth Futaba
Digital: -
Ball bearing: yes
Transmission: Metal



debugtestarray(9) { ["Highlights"]=> NULL ["Funktionen"]=> NULL ["Technische_Daten"]=> array(2) { [0]=> array(1) { [0]=> array(5) { ["id"]=> string(2) "96" ["name"]=> string(11) "Transmitter" ["sort"]=> int(17) ["global"]=> string(1) "0" ["werte"]=> array(1) { [2]=> array(2) { ["wert"]=> string(2) "No" ["beschreibung"]=> string(0) "" } } } } [1]=> array(1) { [0]=> array(5) { ["id"]=> string(2) "66" ["name"]=> string(7) "Charger" ["sort"]=> int(86) ["global"]=> string(1) "0" ["werte"]=> array(1) { [0]=> array(2) { ["wert"]=> string(2) "No" ["beschreibung"]=> string(0) "" } } } } } ["Video"]=> bool(true) ["Massangaben"]=> bool(true) ["Produktdetails"]=> array(2) { [0]=> array(1) { [0]=> array(5) { ["id"]=> string(2) "74" ["name"]=> string(7) "License" ["sort"]=> int(124) ["global"]=> string(1) "0" ["werte"]=> array(1) { [1]=> array(2) { ["wert"]=> string(2) "No" ["beschreibung"]=> string(0) "" } } } } [1]=> array(1) { [0]=> array(5) { ["id"]=> string(3) "209" ["name"]=> string(5) "Brand" ["sort"]=> int(126) ["global"]=> string(1) "0" ["werte"]=> array(1) { [1]=> array(2) { ["wert"]=> string(6) "JAMARA" ["beschreibung"]=> string(0) "" } } } } } ["Lieferumfang"]=> array(1) { [0]=> array(1) { [0]=> array(5) { ["id"]=> string(3) "265" ["name"]=> string(29) "Scope of delivery accessories" ["sort"]=> int(123) ["global"]=> string(1) "0" ["werte"]=> array(2) { [30]=> array(2) { ["wert"]=> string(5) "Servo" ["beschreibung"]=> string(0) "" } [45]=> array(2) { ["wert"]=> string(12) "Instructions" ["beschreibung"]=> string(0) "" } } } } } ["Hinweise"]=> NULL ["Sonstiges"]=> NULL }
Transmitter: No
Charger: No

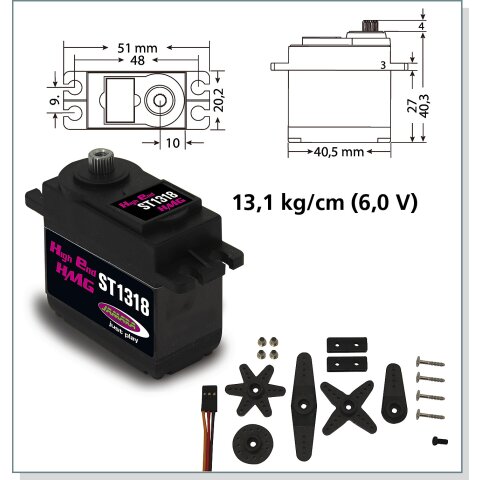

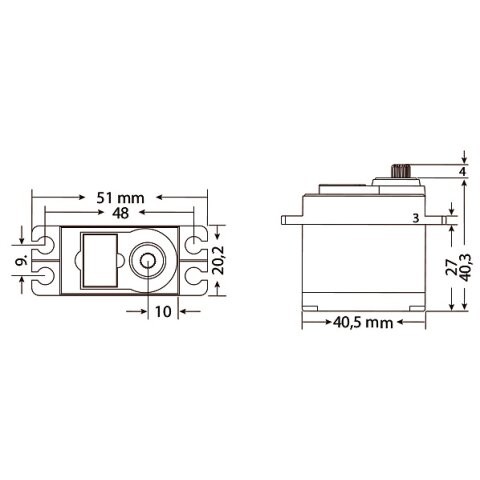

Dimensions ( length × width × height ): 5,10 × 4,05 × 4,43 cm
Product weight: 0,06 Kg
Shipping weight: 0,08 Kg
License: No
Brand: JAMARA
Servo Instructions
